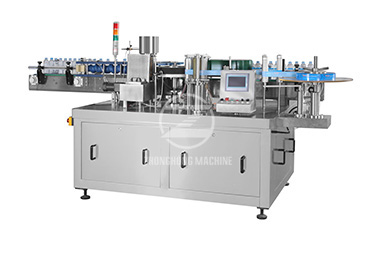

DHT series OPP hot melt adhesive labeling machine


Production description:
This machine is suitable for OPP material labeling, it is easy to operate, and convenient to change the mould. It is directed to high-end customers at home and abroad.
Three phases 380V 50 Hz 8000W
Total length of the equipment: 3000mm (The length of conveying wire of labeling machine : 3000mm; can be adjusted according to the customer production actual dimension)
Equipment width: 2500mm
Conveying wire speed: 30meters/min (Conveying wire speed can be adjusted according to the actual situation)
Speed adjust pattern: Stepless speed regulating
Maximum ex-labeling speed: Maximum labeling speed 150meter/min
Maximum labeling speed: 25000 bottle/hour (The production speed can be adjusted according to the actual situation)
Ex-labeling precision: ±0.5mm
Labeling precision: ±0.5mm
Dimension: The bottle sample is offered by the customers
Width of label (Height): 15-100mm (It is adjustable according to the actual dimension)
Height of the bottle: 65-360 mm (It is adjustable according to the actual dimension)
Diameter of the bottle: 40-128 mm (It is adjustable according to the actual dimension)
The maximum diameter of rolling film:  500 mm
Diameter of paper element: 3 inches (can be 6 inches)
